안내 드립니다.

지속적 글로벌 원부자재 원가 상승 및 수급의 어려움으로 일부 제품의 입고가 중단됩니다.

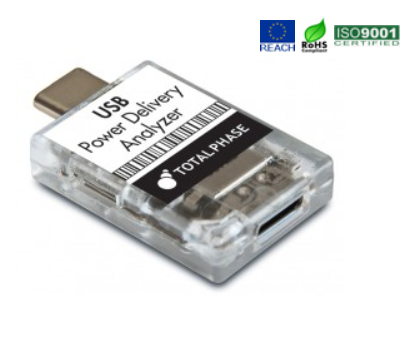

USB PD Analyzer 의 경우, 국내 재고 소진 후 발주 불가 상태이며 재입고 일정을 확인 할 수 없습니다.

또한 Promira Serial Platform 및 Advanced Cable Tester 의 경우 예상 납기가 6개월에서 2023년 말까지 필요 구성에 따라 장기 지연된 납기가 안내 됩니다.

불편을 드려 죄송합니다. 신규 업데이트 사항 있을 시 안내 드리겠습니다.

Integrated level shifting ensures you'll be able to work at a variety of voltages ranging from 0.9 to 5.0 volts without needing any costly accessory boards.
High-speed USB connectivity to the host system provides high performance and convenience for benchtop programming, testing, and emulation.
Ethernet connectivity is convenient for benchtop work, and it also enables remote control for your automation needs.
With the ability to provide a total of 200 mA of power, Promira platform can easily power your project, simplifying connectivity and troubleshooting.
New architecture enables you to download applications to the Promira platform - Upgrade your device when you need new features and you'll never wait for that emergency delivery in the middle of your project.

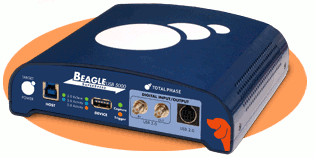

Non-intrusively monitor USB 3.0 and USB 2.0 simultaneously
4 GB on-board buffer with live data streaming to the analysis computer
Real-time USB class-level decoding with the Data Center Software
Precise timing down to 2 ns resolution
Match/Action trigger and filter system
Hardware-based USB 2.0 and 3.0 packet suppression
USB 3.0 downlink enables longer captures
Enable advanced sync to monitor applications requiring multiple analyzers
Automatic support for data scrambling, spread spectrum clocking, polarity inversion, and receiver detection
Multiple digital inputs and outputs for synchronizing with external devices
Fully Windows, Linux, and Mac OS X compatible with support for 32- and 64-bit systems

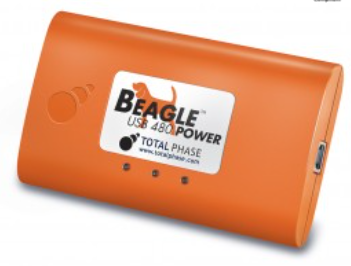

Current/Voltage Monitor
-Real-time graphing of VBUS current and voltage values
-Interactive and bi-directional correlation of current/voltage values with USB data
USB 2.0 Advanced Triggers
-Create state-based and flexible trigger conditions based on data patterns, packet types, error types, events, and other criteria
-Hardware packet filtering
-Up to eight independent states and six matches per state for USB 2.0 captures
-Digital inputs and outputs to synchronize with oscilloscopes or logic analyzers
High Performance Hardware Buffer
-256 MB capacity
-Large circular buffer
Real-Time Non-Intrusive Monitoring
-Real-time data analysis and display
-Automatic bus speed detection
-Low/Full/High-Speed USB 2.0
-Capture traces to >25 GB
Real-Time USB Class-Level Decoding
-HID, Audio, Video, Still Image, Printer
-Mass Storage, Hub
-Network, Mobile, CDC

Non-intrusively monitor I2C up to 4 MHz
Non-intrusively monitor SPI up to 24 MHz†
Non-intrusively monitor MDIO up to 2.5 MHz (Clause 22 and Clause 45)‡
Real-Time Data Capture and Display - Watch I2C, and SPI packets as they occur on the bus.
Bit-level timing down to 20 ns resolution.
Fully Windows, Linux, and Mac OS X compatible
Includes full function monitoring tools
Low Cost
Actual SPI capture performance is dependent on CPU speed and SPI bus throughput. 24 MHz SPI capture has been tested for typical applications (e.g., captures of a few hundred SPI packets). Depending on user configuration, the maximum achievable capture throughput for continuous streaming applications may be less than 24 MHz.
